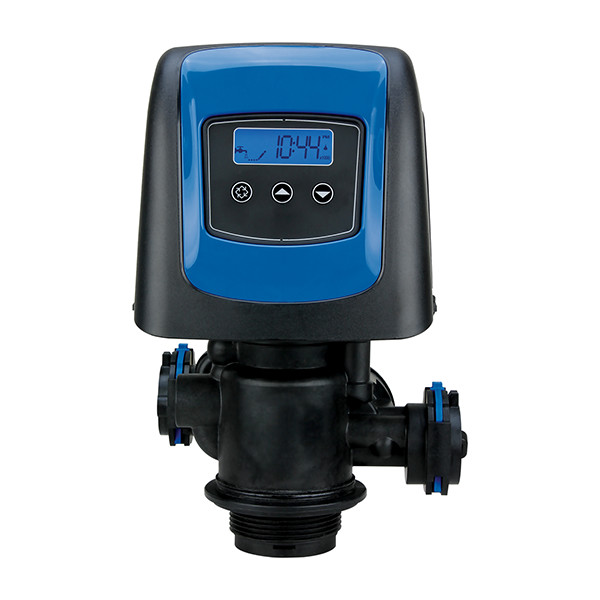

5810

FEATURES & BENEFITS

  • Fiber-reinforced polymer valve body for superior strength and durability, non-corrosive, and UV-resistant
  • Continuous service flow rate of 37 GPM with a backwash of 28 GPM
  • Backwash capability accommodates softener tanks up to 21″ and filters up to 21″ in diameter
  • Fully adjustable 3- or 5-cycle control for efficient and reliable water treatment system
  • Time-tested, hydraulically-balanced piston for service and regeneration
  • Optical sensor for precision cycle positioning
  • Soft water refill for a cleaner brine tank
  • Designed with double backwash for reduced hardness leakage
  • Diagnostics for historical valve performance
  • Programming stored in memory and will not be lost due to power outages

ACCESSORIES & OPTIONS

  • Filter or softener control valves
  • Downflow co-current or upflow counter-current regeneration
  • Plumbing connections in 3/4″ to 1-1/4″ NPT, BSP, and sweat
  • Fiber-reinforced polymer high-flow bypass valve
  • Variable reserve for increased efficiency
  • Programmable regeneration types for increased flexibility
  • Two color bezel options of black or blue
  • XTR2 – Premium touch screen LCD display with two programmable relay outputs for both normally opened and normally closed contacts
  • SXT – Large LCD display and user select-able time clock or metered function; usable for filtration and softener systems

CERTIFICATIONS

  • Tested and Certified by the WQA to NSF/ANSI Standard 44 for Water Softener Performance.
  • Tested and Certified by the WQA to NSF/ANSI Standard 372 for Lead Free Compliance.
